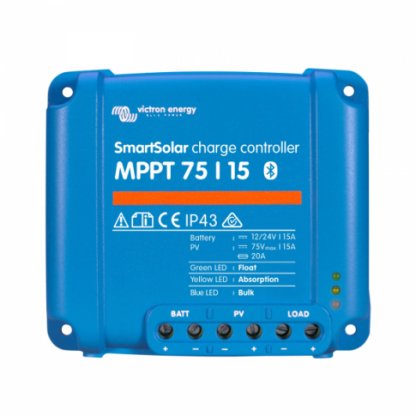

Victron SmartSolar MPPT?75/15

Description

Victron SmartSolar 75V 15A MPPT Solar Charge Controller – Intelligent, Efficient, and Bluetooth-Enabled

The Victron SmartSolar 75/15 MPPT controller is part of Victron’s advanced SmartSolar range, designed to maximize energy harvest while maintaining optimal battery health. Featuring ultra-fast MPPT technology and built-in Bluetooth, it offers superior performance, remote monitoring, and intelligent battery management.

Ultrafast MPPT Technology

This 15A controller uses high-speed Maximum Power Point Tracking (MPPT) to continuously adjust to varying sunlight and temperature, extracting maximum power from the solar array. Compared to PWM controllers, it delivers up to 30% more energy and performs up to 10% better than standard MPPT controllers, especially in low-light conditions.

Built-In Safety Features

Equipped with robust protection, it safeguards against battery reverse polarity, short circuits, low-voltage disconnect, and battery overheating. An internal temperature sensor and advanced fault diagnostics provide comprehensive system monitoring, with errors indicated via bright LED signals.

Intelligent Battery Management with BatteryLife

The integrated Victron BatteryLife function prevents deep battery discharge and extends battery life by adjusting load thresholds based on charge levels. This dynamic system ensures consistent full recharges, even in poor weather, or allows for manual configuration through VictronConnect.

Inbuilt Bluetooth for Easy Monitoring

With built-in Bluetooth, users can connect their mobile devices to the VictronConnect app without the need for additional hardware. The app provides:

• Live Data: Real-time solar output, battery voltage/current, and state of charge
• Detailed Logs: 30-day history with graphs showing daily energy yield, voltage, and power trends
• Load Configuration: Pre-set or custom load management, including streetlight control for nighttime lighting

For PCs without Bluetooth, the controller can connect via a VE Direct USB cable.

Optional Remote LCD Display

An optional MPPT Control panel (sold separately) allows on-site monitoring and adjustment of solar, battery, and load parameters, with access to 30 days of performance data and customizable charging stages.

Durable and Versatile Design

The Victron SmartSolar 75/15 is built to withstand extreme temperatures, high altitudes, dust, and marine environments. With an IP43-rated enclosure and resin-encapsulated electronics, it offers reliable performance in tough conditions.

Battery Compatibility

Compatible with AGM, Gel, Tubular Plate, and Lithium batteries, this controller is ideal for a range of off-grid applications, from campervans to marine systems.

Experience smarter solar energy management with the Victron SmartSolar 75/15 MPPT controller—built for efficiency, durability, and convenience.
