“The Micro Portland” + Can FL1324 Sink Hob

Description

Smaller version of our popular ‘Portland’ Campervan Pod

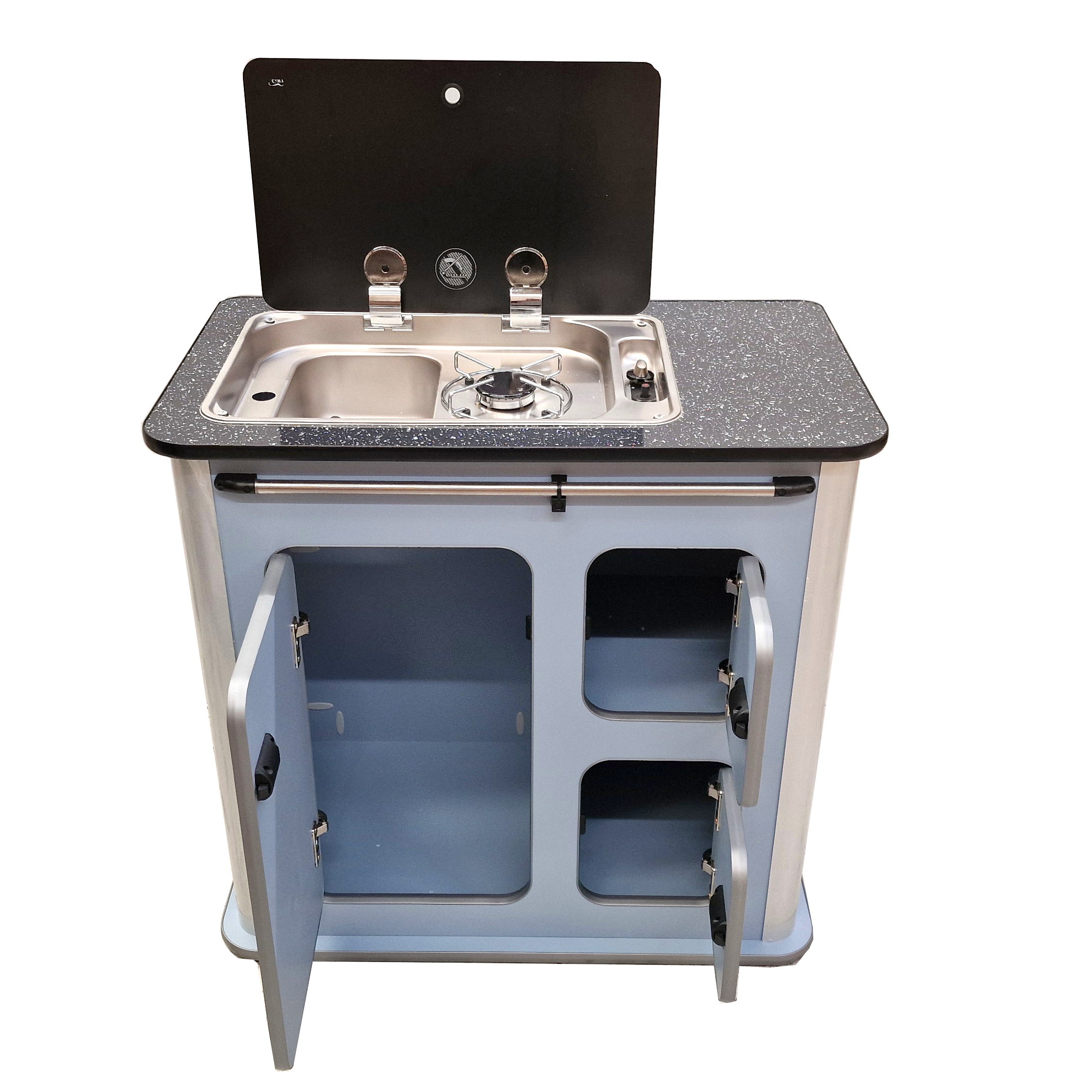

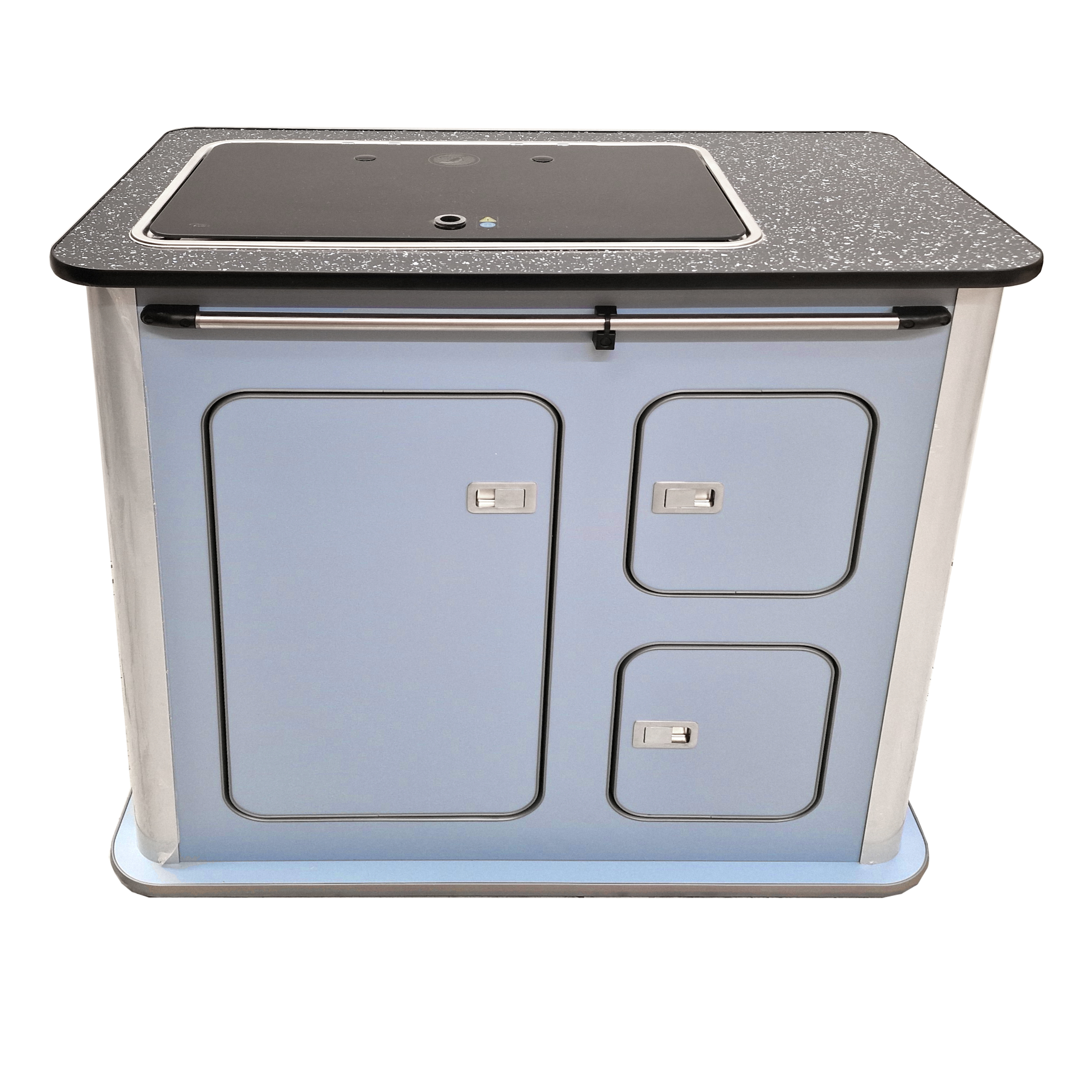

In house designed and CNC machined, denim blue kitchen pod, suitable for smaller vans where space is at a premium. Featuring a Can sink/hob unit, which is a great size, as it allows worktop space, despite the reduced size of the pod. Available in a wide range of styles and colours (prices may vary) . See image – please contact us for availability and pricing.

Approx Dimensions –

• 800mm Wide
• 750mm High
• 450mm Deep

Pocket hole construction.

Fully hand assembled.

Made from lightweight 15mm ‘Denim Blue’ poplar furniture ply.

Black Sparkle worktop trimmed with black table trim.

Excellent screw retention

Incorporates Aluminium corner profiling for strong structural finish

Complete with the following

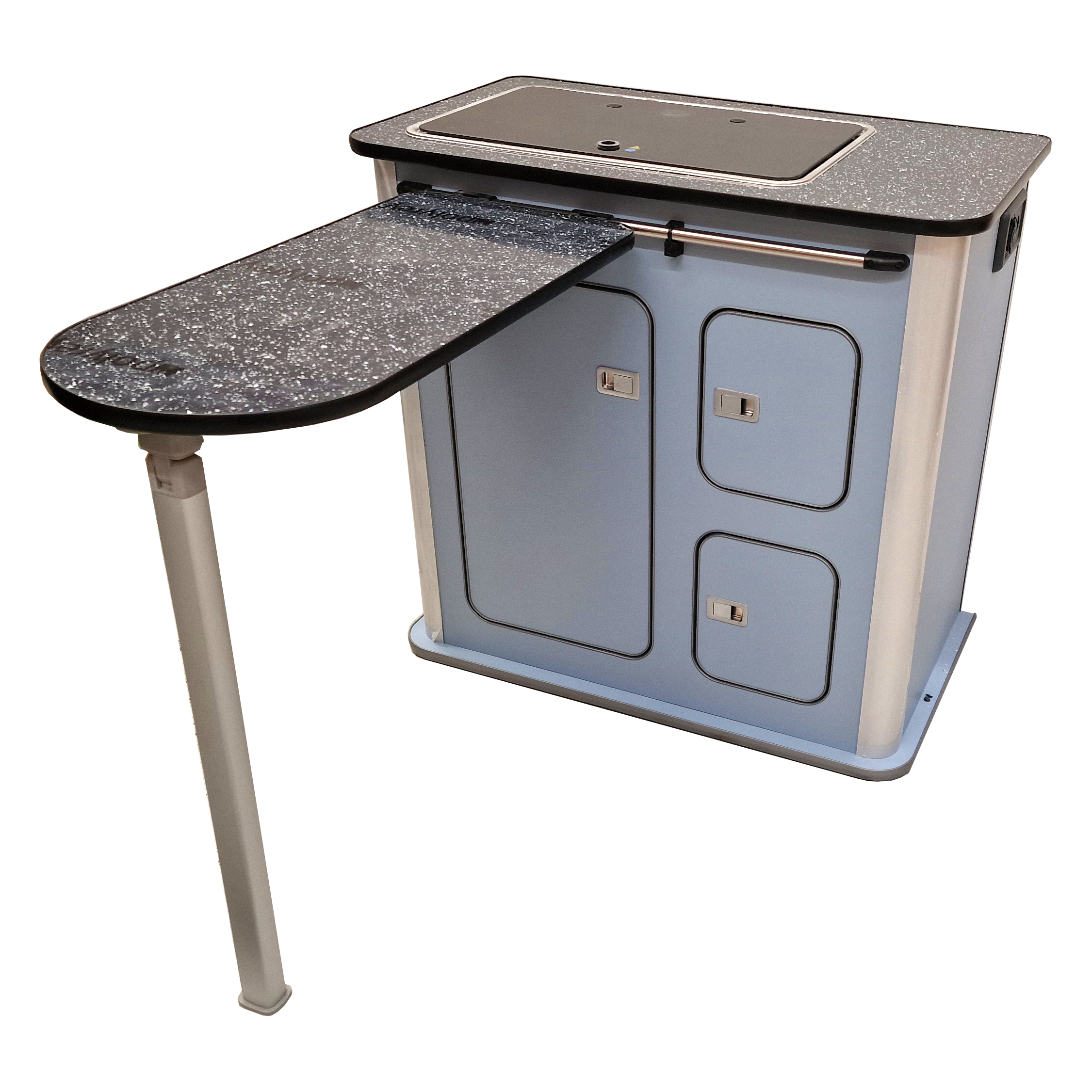

Table with sliding connection kit & table leg

CBE double socket (12v & double USB)

Finished with Silver t-trim

Hafele Pearl nickel push locks.

Can 1324 (Left handed sink) & FULL installation kit

Kit Includes

Can 1324 LH hob and sink

Quality microswitched tap

Waste outlet & plug

2 x 10L Jerry cans

Barwig Submersible water pump 10lpm

2 Metres  Black convoluted waste water pipe

2 metres Blue fresh water hose (food grade)

1 metre Flexible gas hose 8mm

2 metres copper gas pipe 8mm

Gas Regulator

8mm Compression fitting

8mm compression nozzle

gas drop out vent

pack of 16mm hose clips

pack of 25mm hose clips

4 worm drive clips

Please refer to pictures and detailed drawings for measurements

This unit is for COLLECTION in Denton, Gt. Manchester.

We only supply quality products, which are hand assembled to order, the current lead time is approximately 10 working days – we will call you to confirm a collection date on receipt of order.

We do NOT supply flat pack units.

We do NOT use furniture corner blocks

We do NOT use MDF – only lightweight ply.
