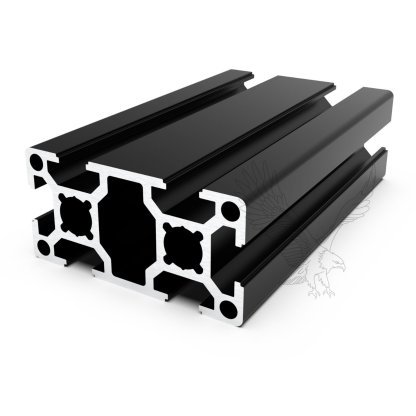

30 x 60 (3060) Aluminium T-Slot Profile Satin Matt Black

Description

Our  3060 Aluminium t-Slot profile  features 6 x 8.2mm t-slots and are 2000mm in length.

All our profiles & components are compatible with each other, enabling it to be used in a vast array of application & projects.

A strong & robust modular solution to meet all your requirements.

All our profiles come from a single mill to ensure greater quality and consistency across every profile.

Typical Applications – Frames, Assembly Stations, CNC Machines, Robotic Enclosures, partitions, Showcases etc, and many

others. Please make sure the size required is suitable for your application & any load requirements. .

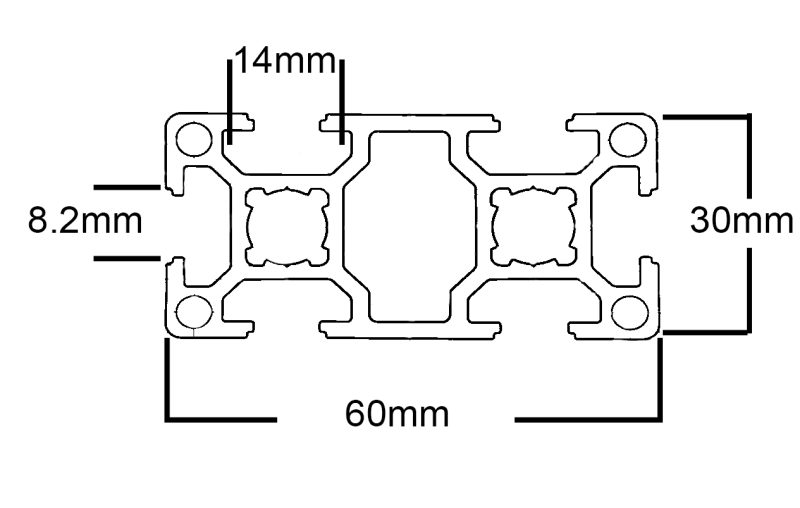

Specifications

Profile: T-SLOT B-Type

Cross-section: 30x60mm

Slot width: 8.2mm

Slot Height:9.2mm

Material: Aluminium

Surface treatment: Black / Anodised

Approx Shipping weight: 9.45kg

Shipping Height:  30mm

Shipping Length: 2000mm

Shipping Width: 60mm

Length Tolerance:: ± 0.25mm

Tap size: M8

Full Component list.

SKU 27798 3030 – 30mm x 30mm Anodised (silver)

SKU 27808 3030 – 30mm x 309mm Satin Matt Black

SKU 27809 3060 – 30mm x 60mm Anodised (Silver)

SKU 27810 3060 – 30m x 60mm Satin Matt Black

SKU 27811 Internal 90 Deg

SKU 27812  Small Corner Connector

SKU 27813 Large Corner Connector

SKU 27814 Spacer

SKU 27815 Square Nut

SKU 27816 Cup Bolt
