Description

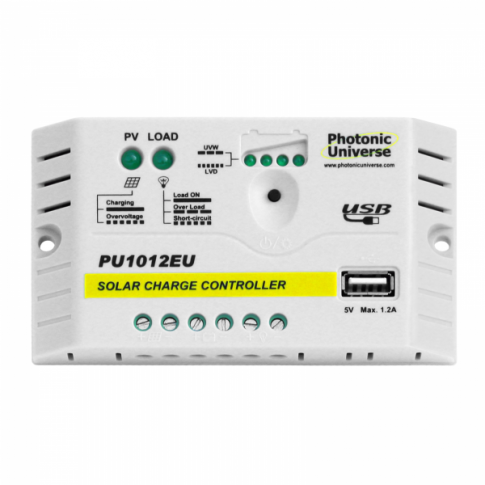

10A 12V Solar Charge Controller – Advanced Protection & Efficient Charging
This intelligently designed 10A 12V solar charge controller offers reliable protection and efficient charging for 12V batteries, utilizing advanced PWM (Pulse Width Modulation) technology to extend battery life and recover lost capacity.
Key Safety Features
- Reverse current protection (prevents battery discharge through the panel at night)
- Overcharge, over-discharge, overvoltage, overload, and short circuit protection
Key Features
- 5V USB Port (1.2A): Fast charging for mobile devices
- Load Terminals: Connect 12V devices such as lights
- LED Indicators: Display battery charge level, solar panel, and load status
- On/Off Button: Control connected 12V loads
Compatibility
- Supports solar panels up to 160W (optimal with 17-20V input)
- Works with sealed, gel, and flooded batteries (user-selectable)
- For panels over 25V, consider MPPT controllers for higher efficiency
Specifications
- Charging Current: 10A
- Load Current: 5A
- Rated Voltage: 12V
- Self-Consumption: ≤5mA
- USB Output: 5V/1.2A
- Working Temp: -35°C to +55°C
- Terminal Capacity: 4mm² wires
- Size: 120.3 x 67 x 21.8 mm | Weight: 90 g
- Mounting Holes: 2 x 4.5mm
Ideal for DIY solar setups, this compact, efficient controller ensures safe, reliable power management.
